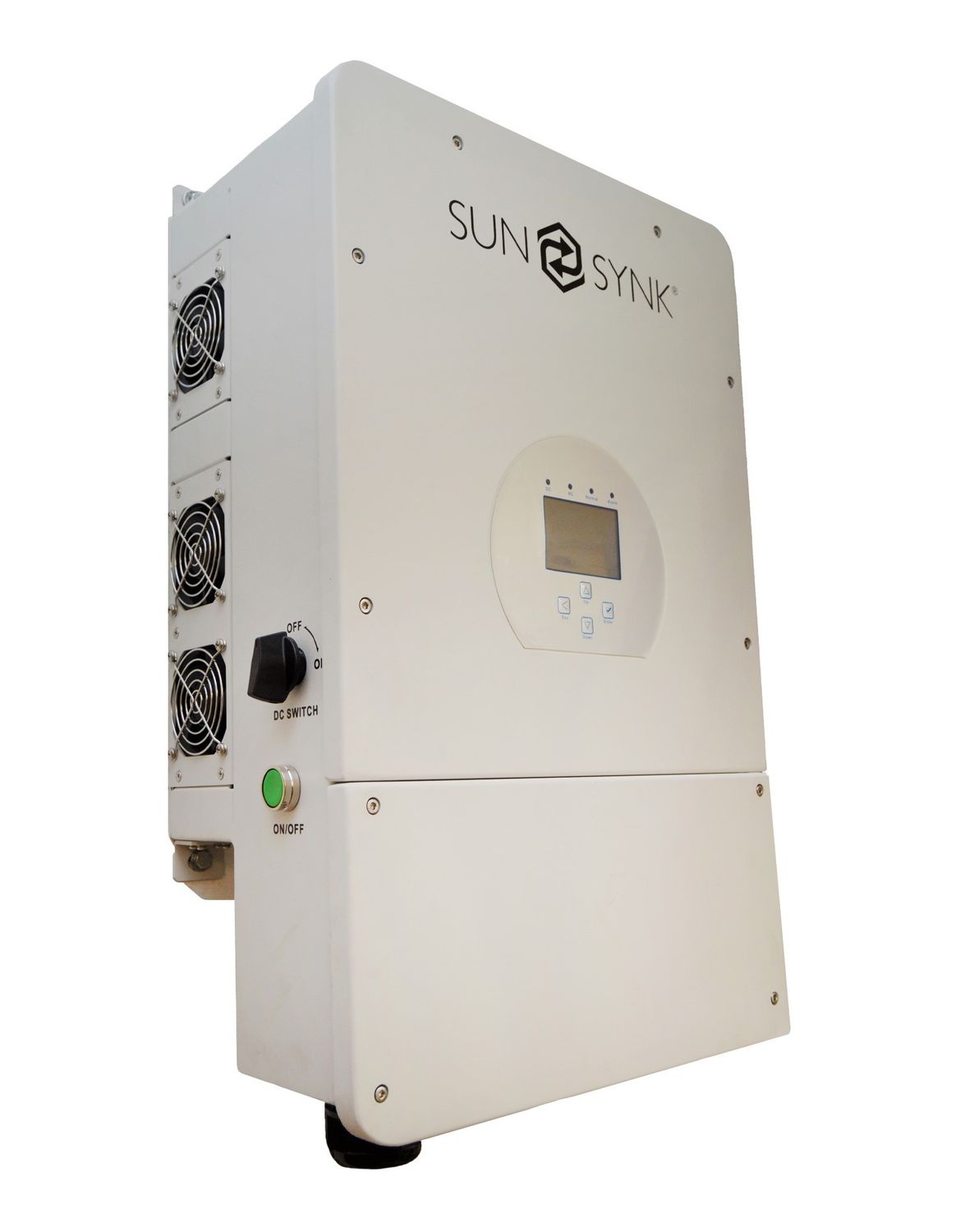

Sunsynk 8kW Inverter

A high-capacity single-phase hybrid inverter built for larger homes or light commercial needs. It can handle greater solar and load demand, with robust design for continuous 8 kW output and intelligent power management (load shifting, peak shaving, etc.).

Technical Specifications:

• AC Output: 8,000 W continuous (single-phase, 230V AC, pure sine wave)
• Surge Power: 12,000 W for short duration (supports heavy startup loads)
• MPPT Inputs: 2 × MPPT (solar PV recommended) – allows multiple roof orientations
• Max PV Input: 12,800 W total PV array; 2 strings max per MPPT (each MPPT can handle 26A input max)
• MPPT Operating Range: 125–425 V DC for full power tracking
• Battery Input: 48 V (40–60V range); supports Lithium-ion and Lead Acid batteries
• Max Charging Current: 190A (high charge/discharge rate for 10–15kW battery usage during heavy startup loads)
• Efficiency: >97% (EURO efficiency 97%, MPPT efficiency >99%)
• Generator Input: Supported (separate AC input for generator/grid, 50A bypass relay)
• Parallel Operation: Supported (multiple 8kW units can be paralleled for higher power or for 3-phase systems)
• Display/Communication: LCD display, WiFi dongle included for remote monitoring
• Features: IP65 indoor/outdoor enclosure, quiet smart-fan cooling, and anti-islanding protection for grid-tie safety (Safety-certified (NRS097) for grid tie-in)
