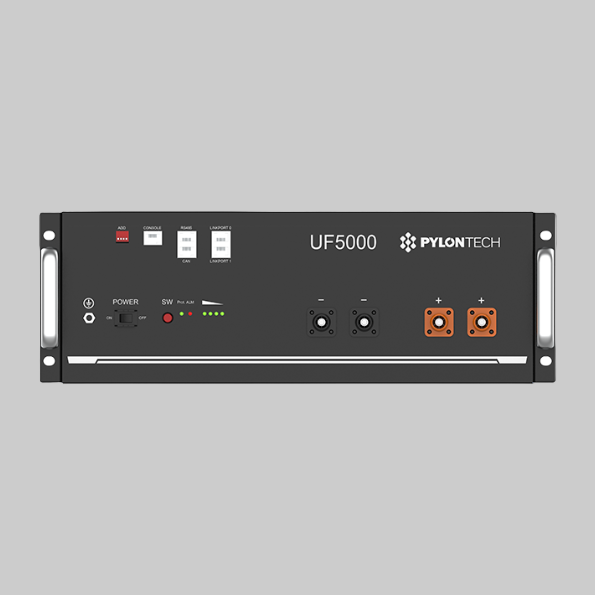

Pylontech UF5000 — 5.12kWh LiFePO4 Rack Battery
The Pylontech UF5000 is a 51.2V LiFePO4 rack-mounted battery designed for residential and small commercial energy storage. Built for long service life with over 6,000 cycles at 95% depth of discharge, it offers reliable daily cycling performance with a modular design that allows expansion up to 20 units (102.4kWh). Compatible with a wide range of inverters via CAN/RS485 communication.
Key Features
- Over 6,000 cycles at 95% DoD — designed for daily cycling
- 1C rated capable of discharging at 5.12kW
- Modular and scalable — up to 20 units in parallel (102.4kWh)
- CAN and RS485 communication for broad inverter compatibility
- Built-in smart BMS for comprehensive protection
- Rack-mountable design for neat, professional installations
- LiFePO4 chemistry — safest lithium battery technology
- Wide operating temperature: -10°C to 55°C
- 10-year manufacturer warranty
- Not compatible with the Pylontech-UP5000, Pylontech-US3000C, or Pylontech-US2000C batteries.
Technical Specifications
| Model | UF5000 |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 51.2V (48V system) |
| Nominal Capacity | 5.12kWh (100Ah) |
| Usable Capacity | 4.864kWh (95% DoD) |
| Cycle Life | >6,000 cycles @ 25°C with 95% DoD |
| Max Parallel Units | 20 units (102.4kWh total) |
| Dimensions (W×D×H) | 442 × 452.6 × 161mm |
| Weight | ~48kg |
| Protection | IP20 |
| Operating Temp | -10°C to 55°C |
| Communication | CAN / RS485 |
| Mounting | Rack mount |
| Manufacturer | Pylontech |
