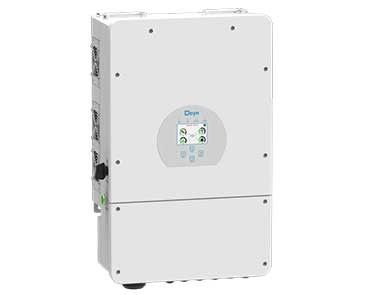

Deye 16kW Inverter

A high-performance 16,000 W hybrid inverter that provides an unprecedented amount of power on single phase. It is designed for scenarios requiring very large off-grid or grid-interactive systems on 230V, such as multi-building properties or small farms running on single phase.

Technical Specifications:

• AC Output: 16,000 W continuous (230V single-phase, pure sine-wave)
• Surge Power: 32,000 W (for 10 seconds) – supports starting heavy equipment
• MPPT Inputs: 3 × MPPT – extremely large PV capacity (up to 25.6 kW solar input total)
• Max PV Input: 25,600 W (MPPT range 150–425V)
• Max PV Input Current: 26 A per MPPT (78A total across 3 trackers) - max 2 solar panel strings per MPPT
• Battery Input: 48V nominal (40 to 60V range) - Supports extensive battery banks; designed for 15+ kWh storage systems
• Max Charging Current: 290A
• Output Waveform: Pure sine wave (THD <3%)
• Efficiency: ~97.4% peak (Euro ~96.7%; MPPT >99%)
• Generator Input: Yes – supports AC input (up to 80–100 A) for generator or utility, with adjustable charger settings
• Parallel Operation: Yes – up to 16 units can be paralleled (for 3-phase systems or very large single phase systems)
• Features: Fan-cooled high-power design.
• Notable features: Safety-certified (NRS097) for grid tie-in
• Warranty: Standard 5-year manufacturer warranty (Extendable to 10-years with approved battery)
