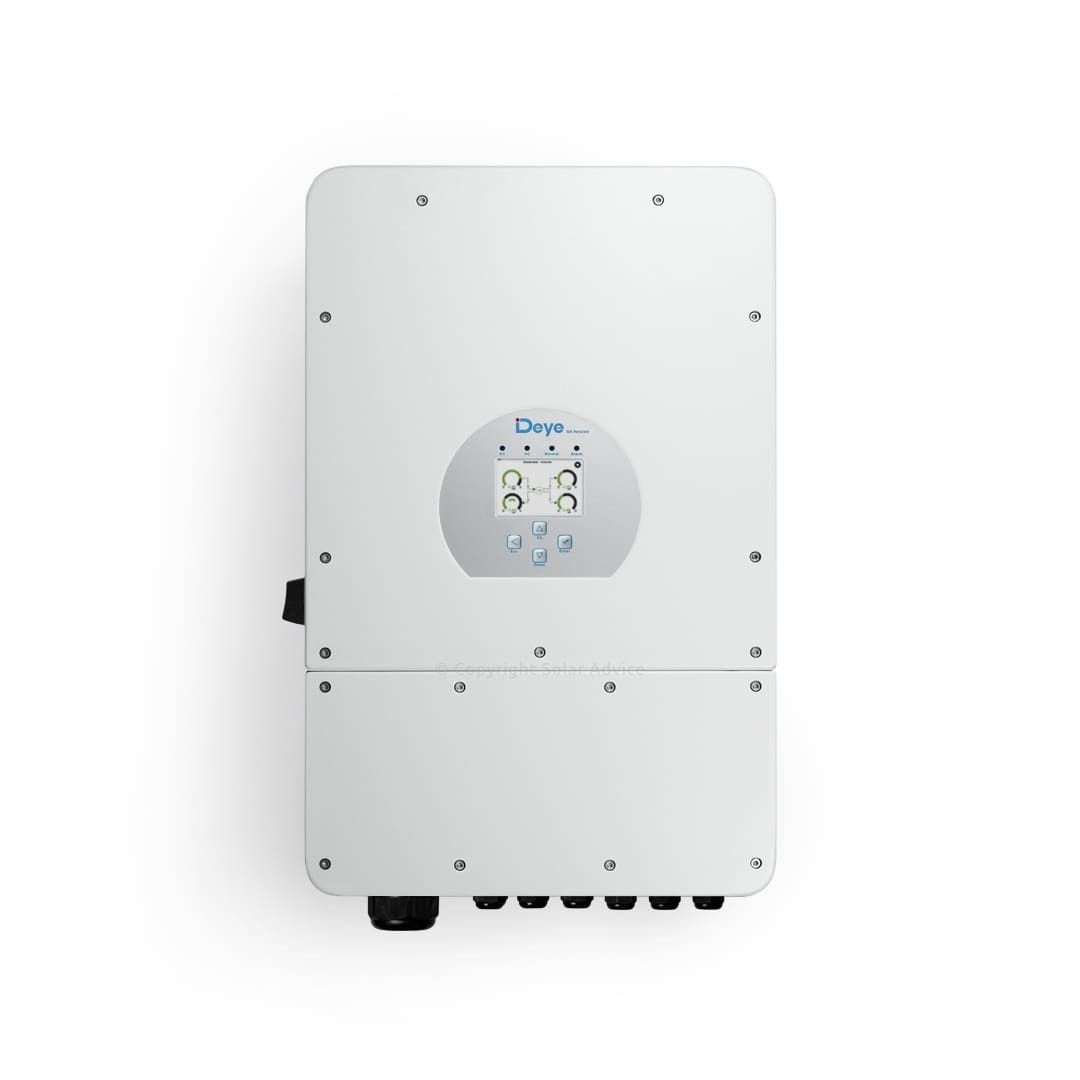

Deye 12kW Inverter (New Gen)

A cutting-edge 12,000 W hybrid inverter that uniquely delivers high power for single phase. It’s well-suited for large off-grid homes or farms and can also be paralleled for 3-phase supply. With its very high PV input and battery charge capability, it ensures you can harvest and use a tremendous amount of solar energy.

Technical Specifications:

• AC Output: 12,000 W continuous (230V single-phase output, pure sine wave)
• Surge Power: 24,000 W (for 10 seconds) – handles large motor startups
• MPPT Inputs: 3 × MPPT (independent inputs) – high PV input capacity (up to 19.2kW PV total)
• Max PV Input: 19,200 W (supports up to 500 V DC, distributed across 3 trackers)
• MPPT Operating Range: 150–425 V DC per tracker
• Max PV Input Current: 26 A per MPPT for two MPPT`s (two trackers can accept max 2 strings of panels). 13A max for a third MPPT (one of the three MPPT trackers can only take 13A max and only 1 string of panels max)
• Battery Input: 48V (40 to 60V range) – large battery bank support (Lithium/Lead compatible)
• Max Charging Current: 220A
• Output Waveform: Pure sine wave (THD <3% on output)
• Efficiency: 97.5% (peak PV→AC efficiency)
• Generator Input: Yes – 63 A AC input supported for generator or grid, with 100A bypass relay for loads
• Parallel Operation: Yes – supports up to 16 units in parallel (for up-scaling to 3-phase or higher power)
• Notable Features: Safety-certified (NRS097) for grid tie-in
• Warranty: 5-year warranty (extendable to 10-years with approved battery)

Please note:

• CANNOT be paralleled with Deye 12kW inverter Classic Generation Model
• CAN only be parallelled with Deye 12kW inverter New Generation Model
